P20090908- Milling machine - from DIETRICH - USA

Please find attached pictures of my DRO installation. I am very happy with this product and I also enclose a picture of my automatic long travel which I build from a windscreen motor with adjustable speed control and reverse switch connected with a dog clutch.

DIETRICH - USA

mTECH DRO on ENCO 1442 Lathe and mill is an ENCO 13x42 Milling machine - Florida, USA (Dave)

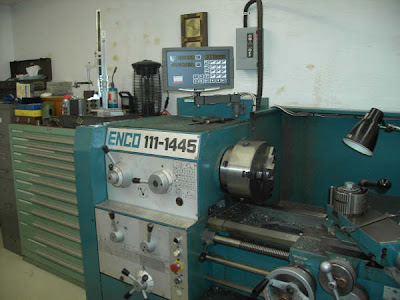

mTECH DRO-2L on Enco 111-1445 Lathe


The connection at the rear of the DRO


a view of both the X and Z axis installation

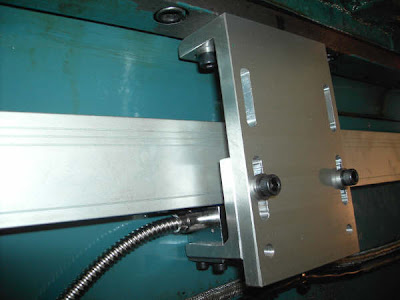

Z axis scale installation

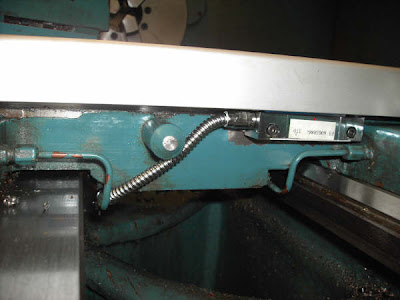

This is the X axis (cross slide) scale installation

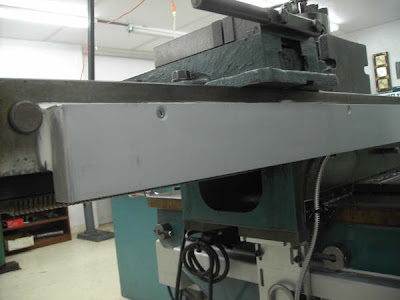

I have routed the cable below the cross slide.


==============================================


Enco Milling Machine 13x42

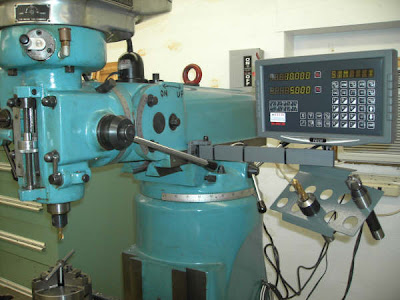

Enco Milling Machine - X and Y axis scale view

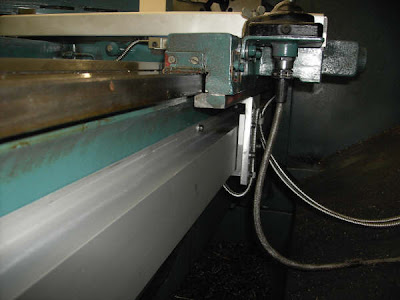

Cabling through the arm and to the DRO


Rear view of the connection to the DRO-2M

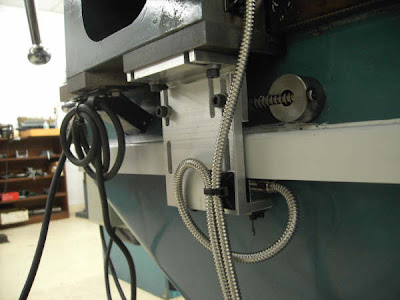

putting on an additional plate before mounting the X scales, to get a good surface.

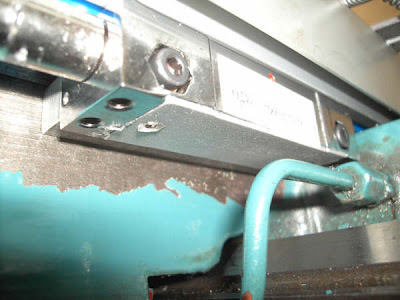

Close-up of the X reader head


Installation of the Y axis scale


full view of the X and Y installation and the cable tie



Close-up view of the Y reader head




The lathe is an ENCO 1442 and the mill is an ENCO 13x42.
The systems are working properly. Good quality equipment. Excelent installation information.
I will recomend these readouts to all.
Thanks
Dave - Florida, USA

360- mTech DRO on Storm Vulcon Surfacer - Manhattan,USA- (Daniel)

Thanks Daniel for his photo on his installation of Storm Vulcon Surface Grinding machine.
















It was a great job, and mTECH is capable of accuracy for grinding usage.

20090923- Bridgeport 2sv Milling machine - Melbourne Australia (Steve)

Hi, I have sent a photo of the readout I purchased from you , I’ve put this on my 2sv Bridgeport, fits perfectly .

I am very happy with this readout , having purchased jenix readouts for my other three machines , I now intend to buy your mTECH DRO in the future. I have another mill that’s needs a readout and will be buying one from you in the near future.

Steve- Melbourne Australia
